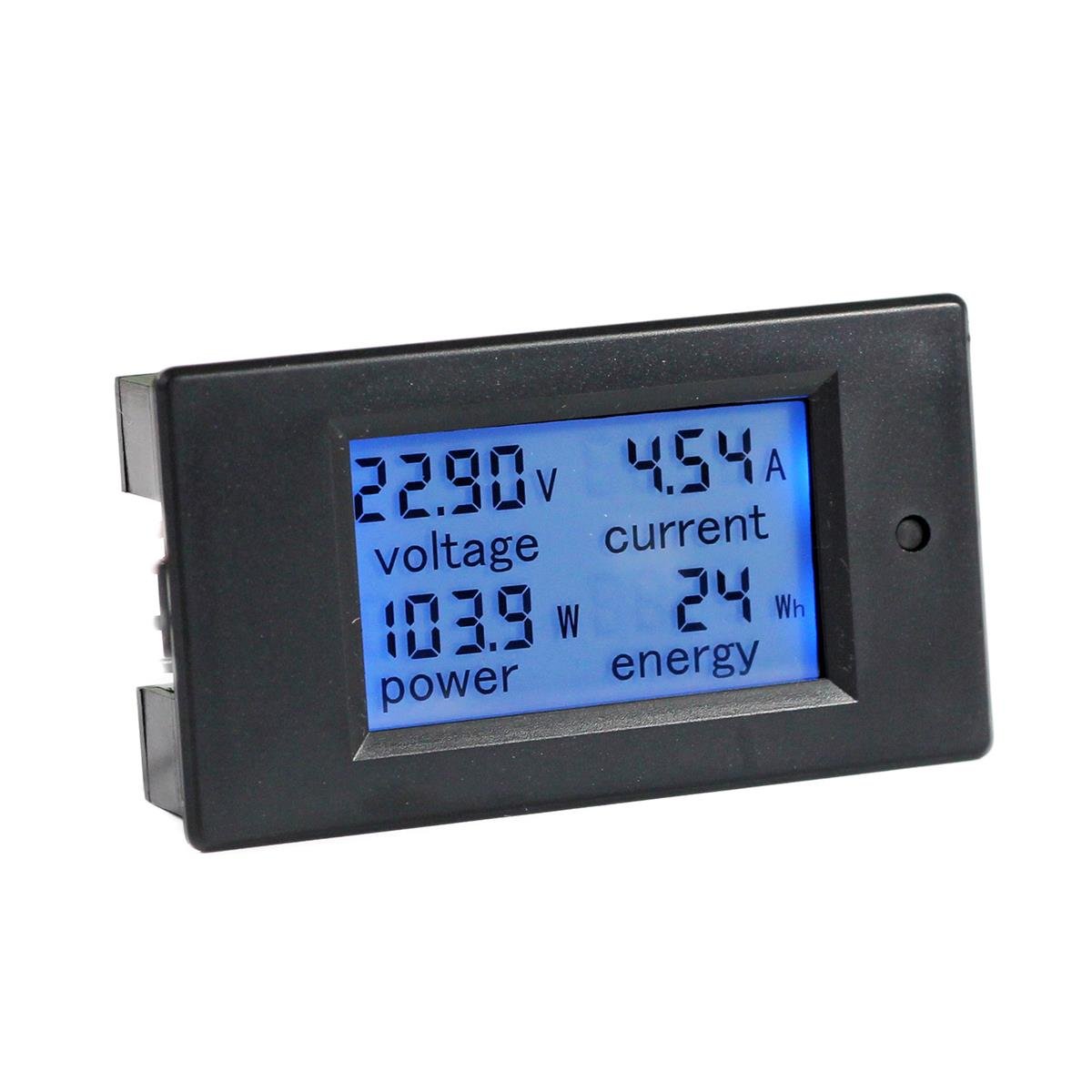

bayite DC 6.5-100V 0-100A LCD Display Digital Current Voltage Power Energy Meter Multimeter Ammeter Voltmeter with 100A Current Shunt
Product Details
Pattern Name: Current range: DC 0 – 100A
Brand: bayite
- Part Number: BAYITE-PZEM-101
- Item Weight: 7.2 ounces
- Product Dimensions: 2 x 1 x 3.5 inches
- Pattern: Current range: DC 0 – 100A
- Power Source: dc
- Display Style: LCD
- Batteries Included?: No
- Batteries Required?: No
- Shipping Weight: 7.2 ounces
- Date First Available: August 10, 2015
- Voltage test range: DC 6.5~100V; Current test range: 0~100A
- Store energy data when power off(can be reset to 0). The blue backlight can be turned on/off manually
- With overload alarm function(If active power is larger than threshold, backlight and power will flash)
- Large-screen LCD (display voltage, current, active power, energy at the same time)
- Note: only display and shunt are included. It doesn’t include any wire or accessories
Pattern Name: Current range: DC 0 – 100A Main Specifications: Working voltage: DC 6.5 ~ 100V Measuring:Accuracy: 1% Power Consumption: 0.2W Measurement speed: 2 times/s Store Energy data when power off. Can be reset to 0. The blue backlight can be turned on/off manually Test Range and Display format: 1.Active Power test range: 0~10kW 2.Energy test range: 0~9999kWh 3.Voltage test range: DC 6.5~100V 4.Current test range: 0~ 100A Precautions 1. This module is only suitable for 6.5~100V DC power. 2. Applied load should not exceed the rated power. 3. Wiring order cannot be wrong. 4. This module is suitable for indoor, please do not use outdoor. Packing including: 1x DC 6.5-100V 100A Power Multimeter
