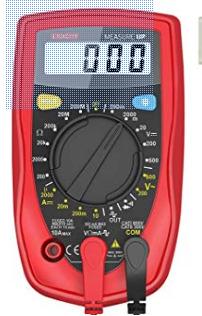

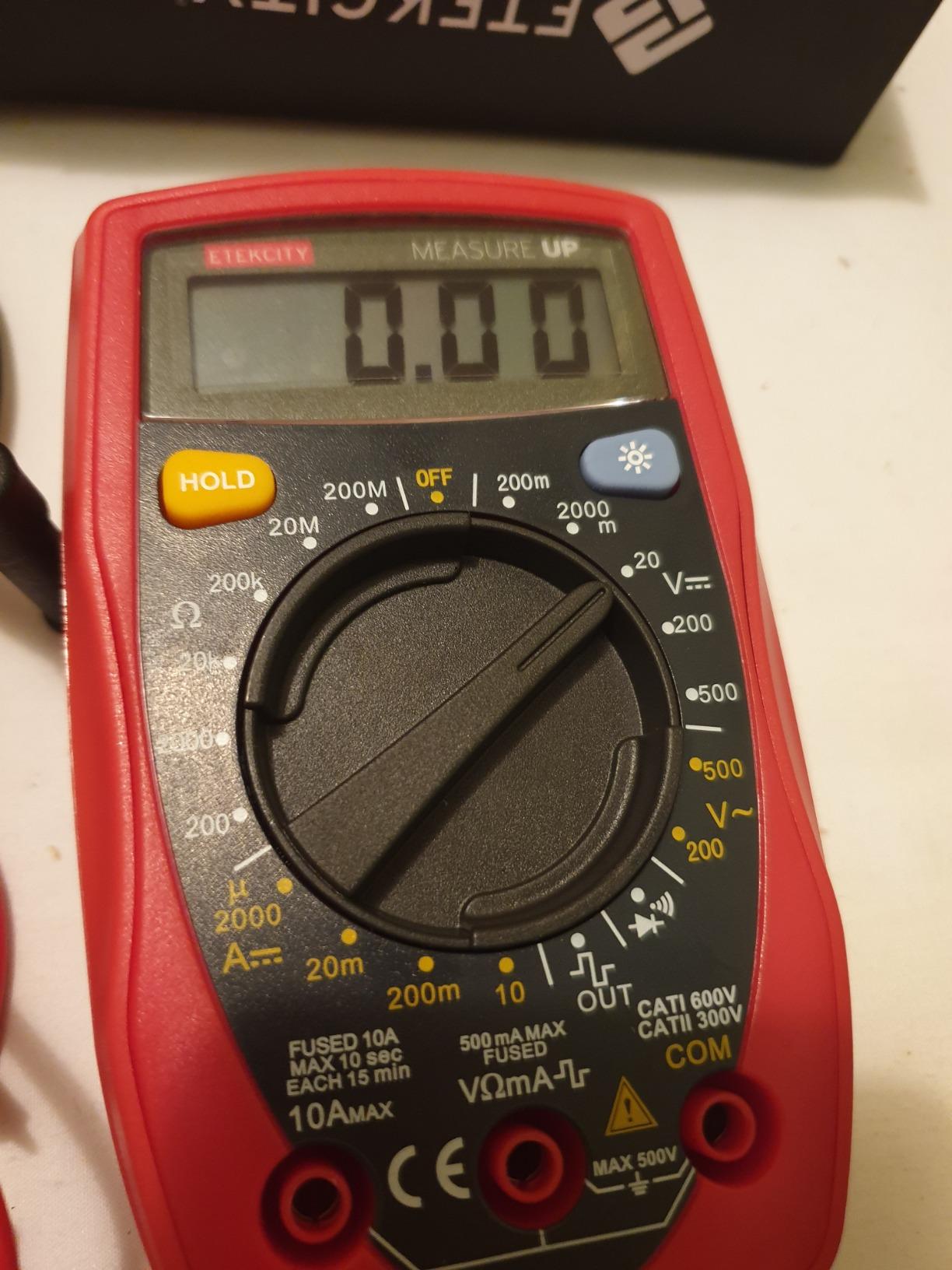

Etekcity Digital Multimeter, AC DC Voltmeter Amp Volt Ohm Current Meter, Electrical Voltage Outlet Circuit Tester With Continuity Resistance Diode Test ,Two Build-In Ceramic Fuses, Red, MSR-R500

Description

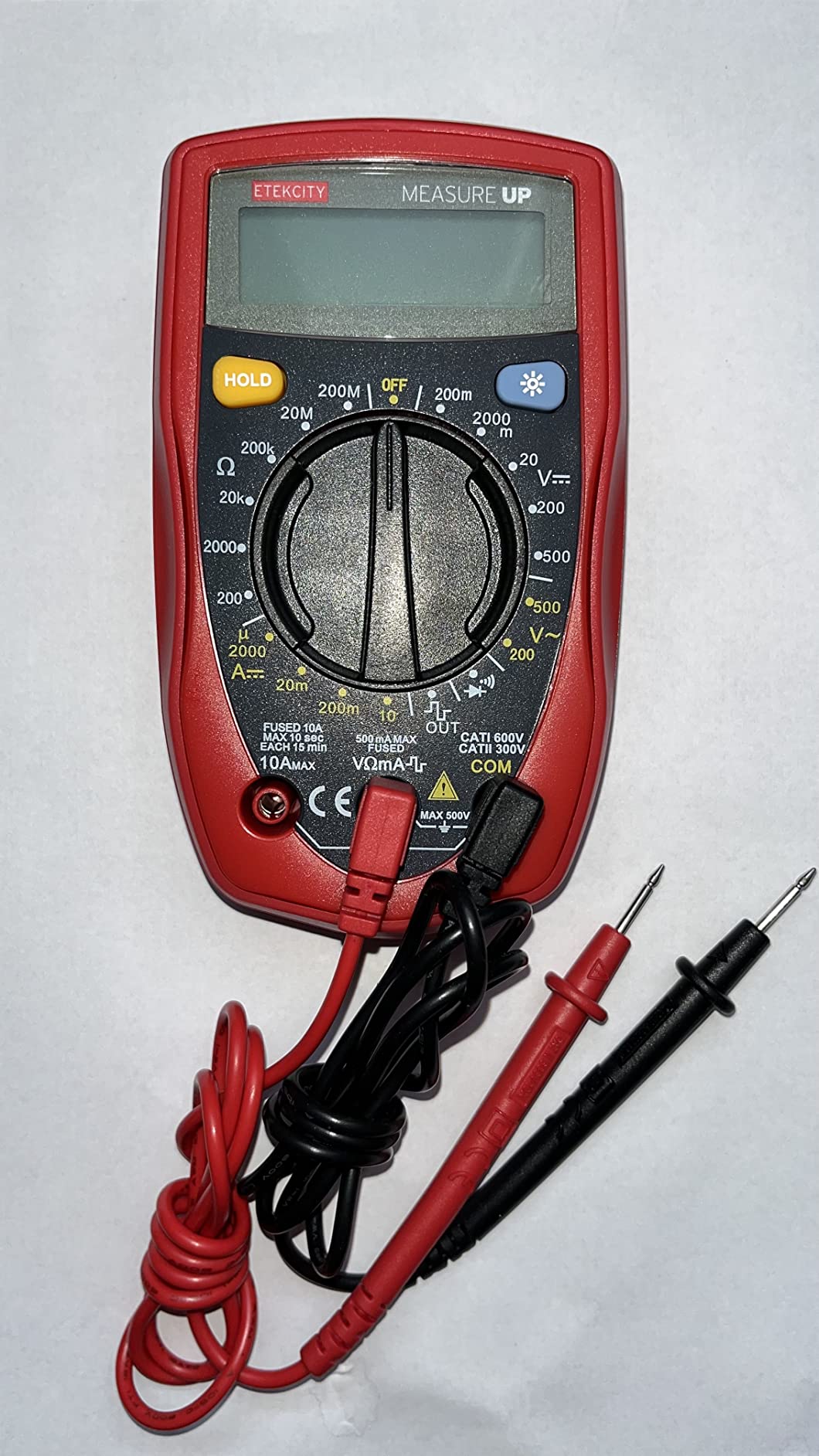

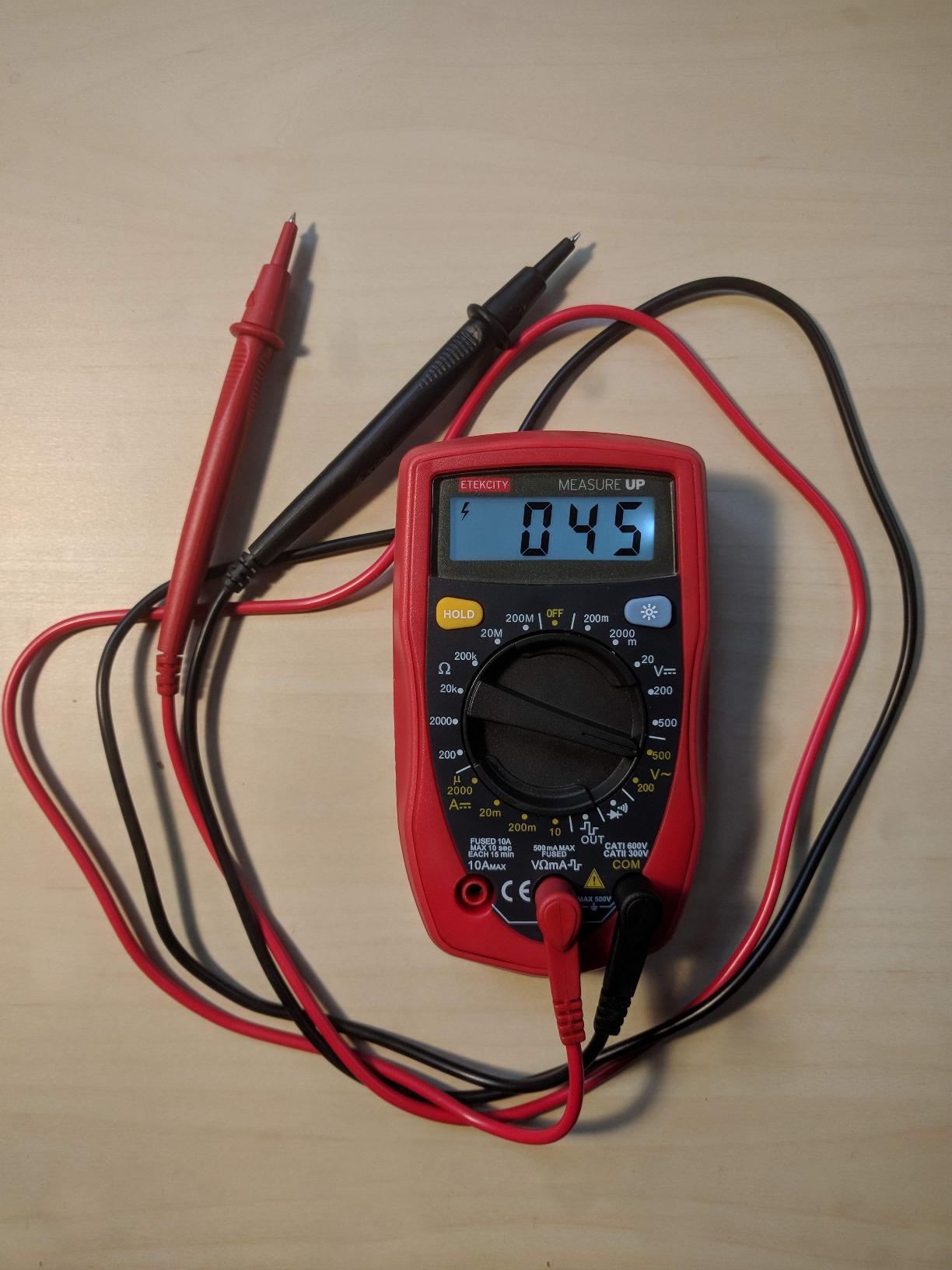

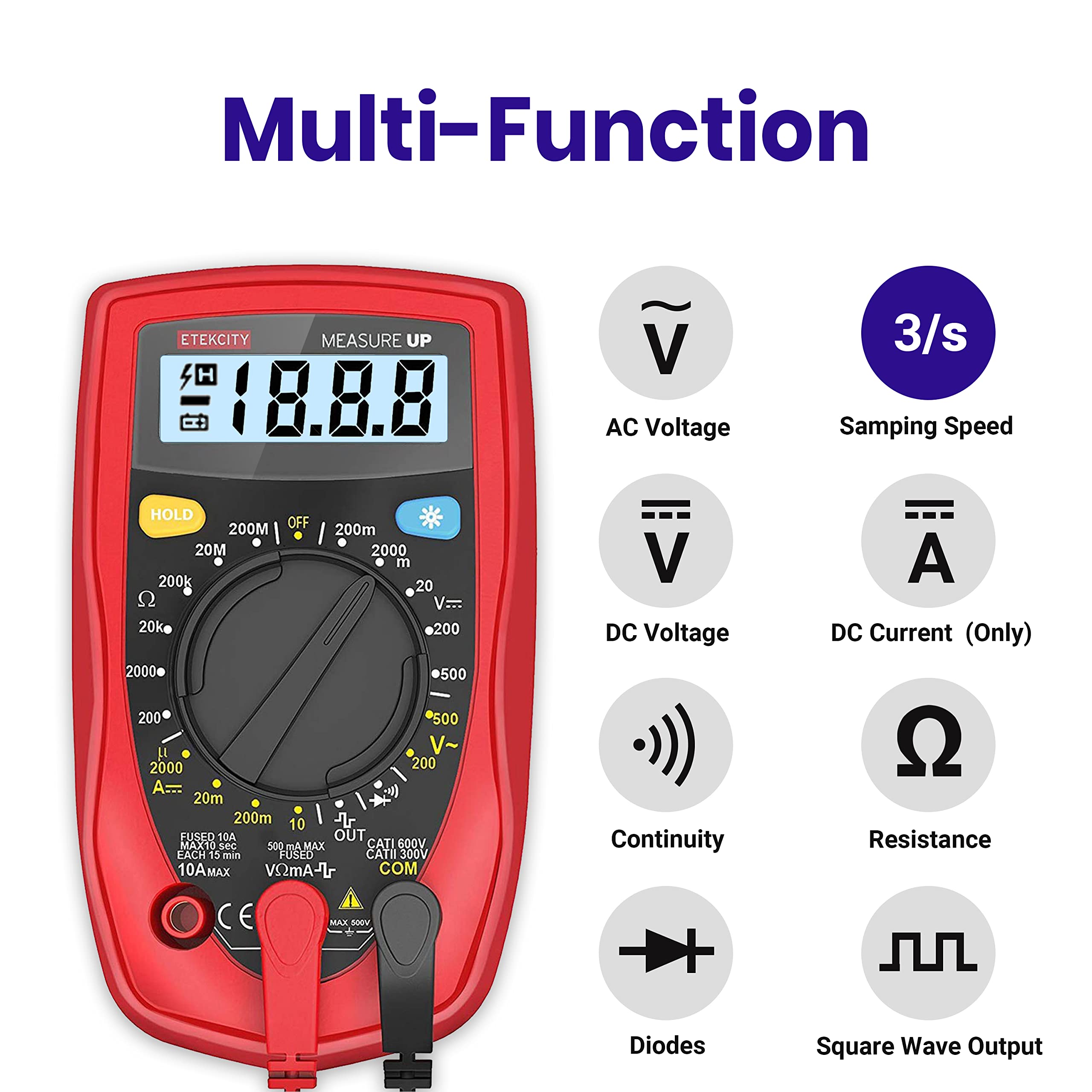

Do It All, and Then Some! The Etekcity MSR-R500 Digital Multimeter is a
practical tool for electricians, hobbyists, and general household use. It is
easy to operate and features many different functions for measuring current,
voltage, and resistance, as well as continuity, transistor, and diode testing.
Specifications ★Display: 1999, 3 1/2 digits ★Range selection: Manual ranging

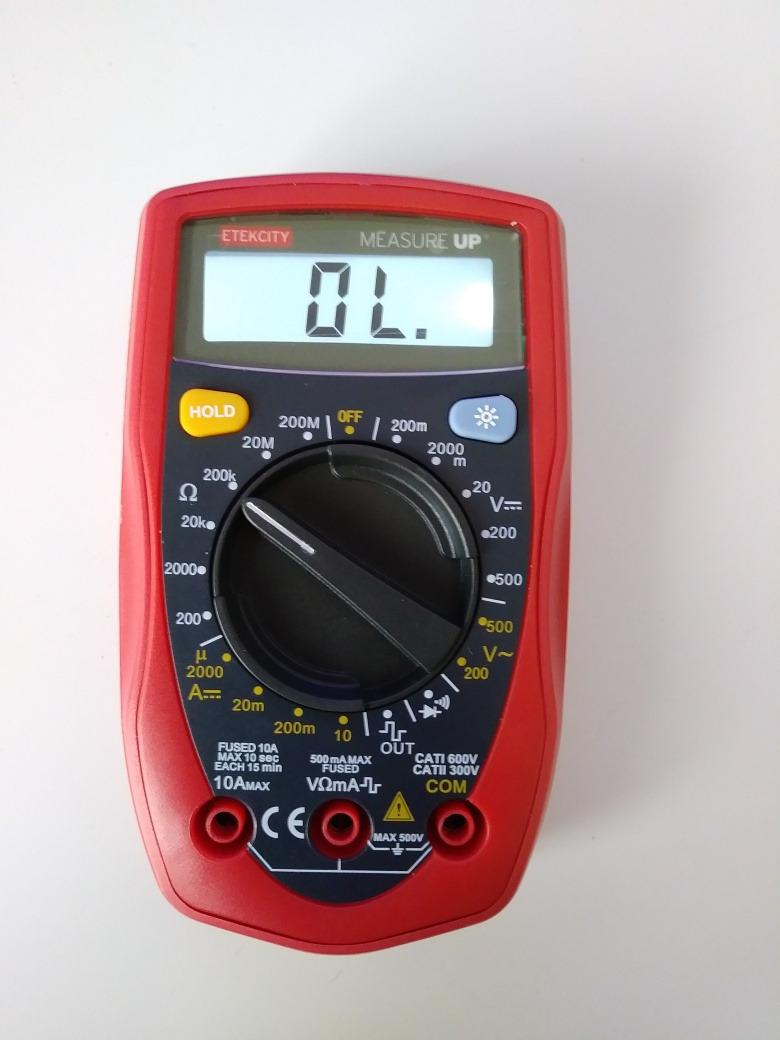

★Overload display: Display OL ★ Sampling Speed: 3 times per second ★Diode
Test: Yes ★Continuity Test: Yes ★Square Wave Output: Yes ★DC Voltage:
200mV/2000mV/20V/200V (0. 5%+2), 500V (0. 8%+2) ★ AC Voltage: 200V/500V
(2%+10) ★ DC Current: 2000A/20mA (1%+2), 200mA (1. 2%+2), 10A (2%+5) ★
Resistance: 200(0.8%+5), 2000/20K/200K (0.8%+2), 20M (1%+5), 200M

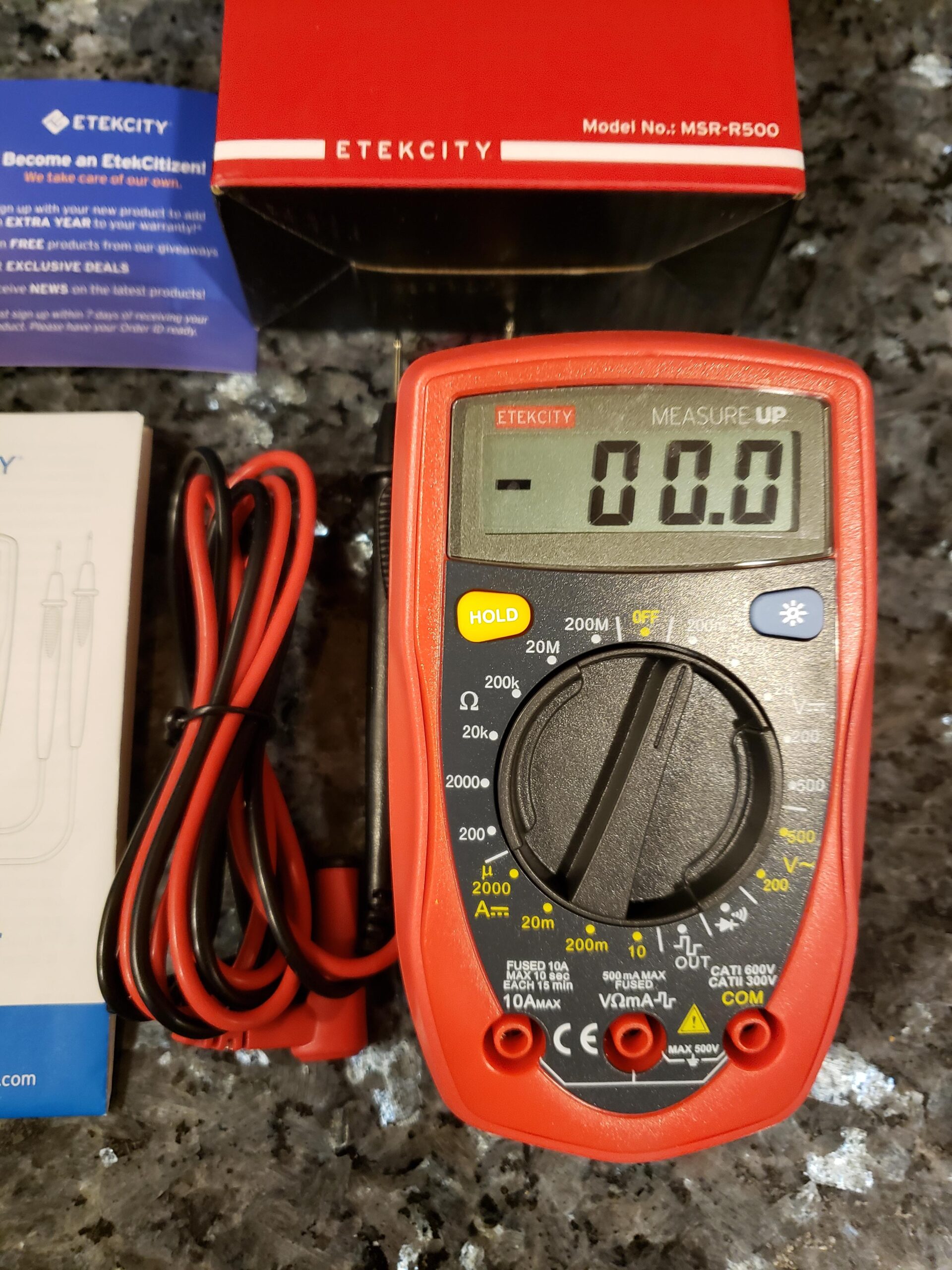

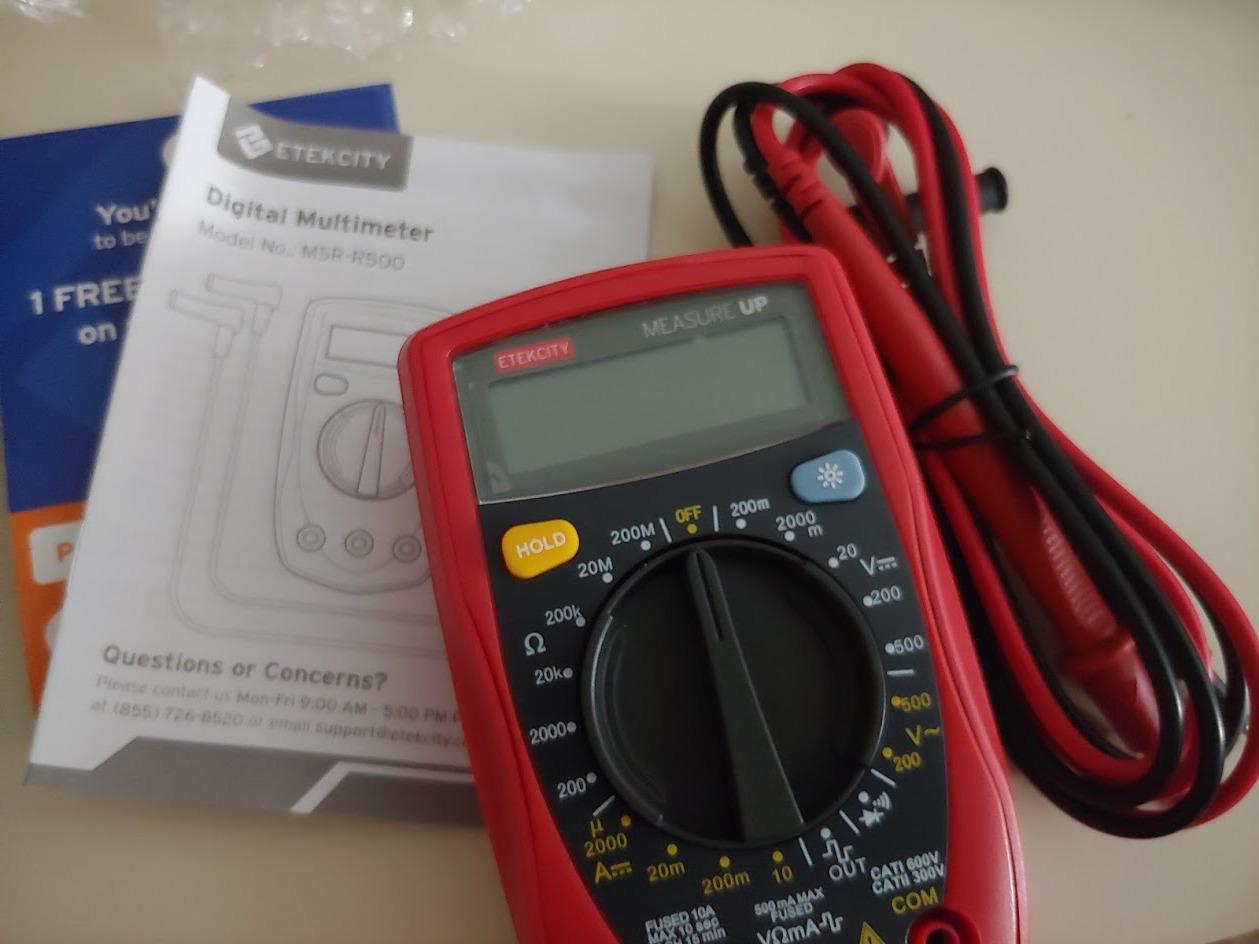

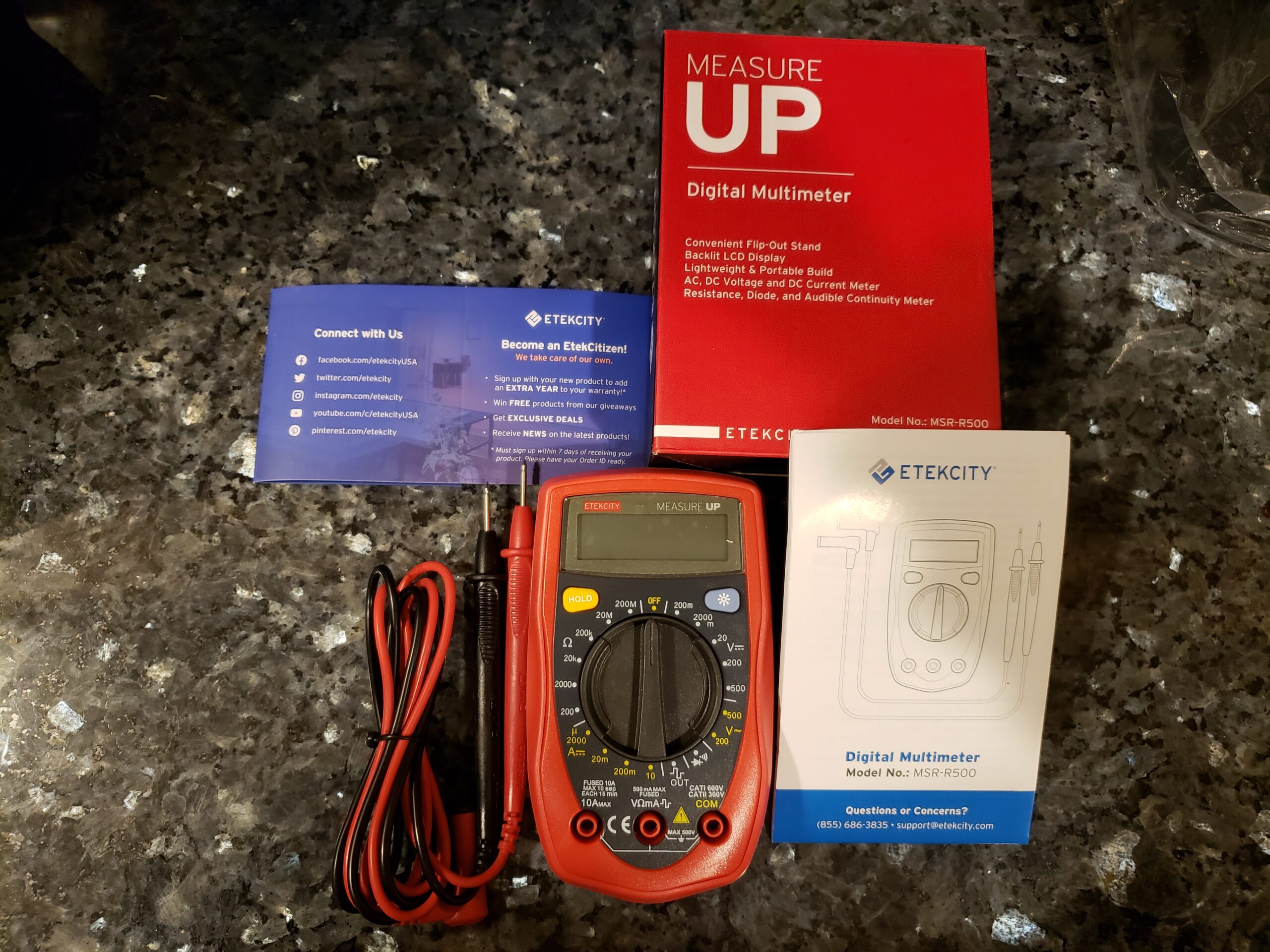

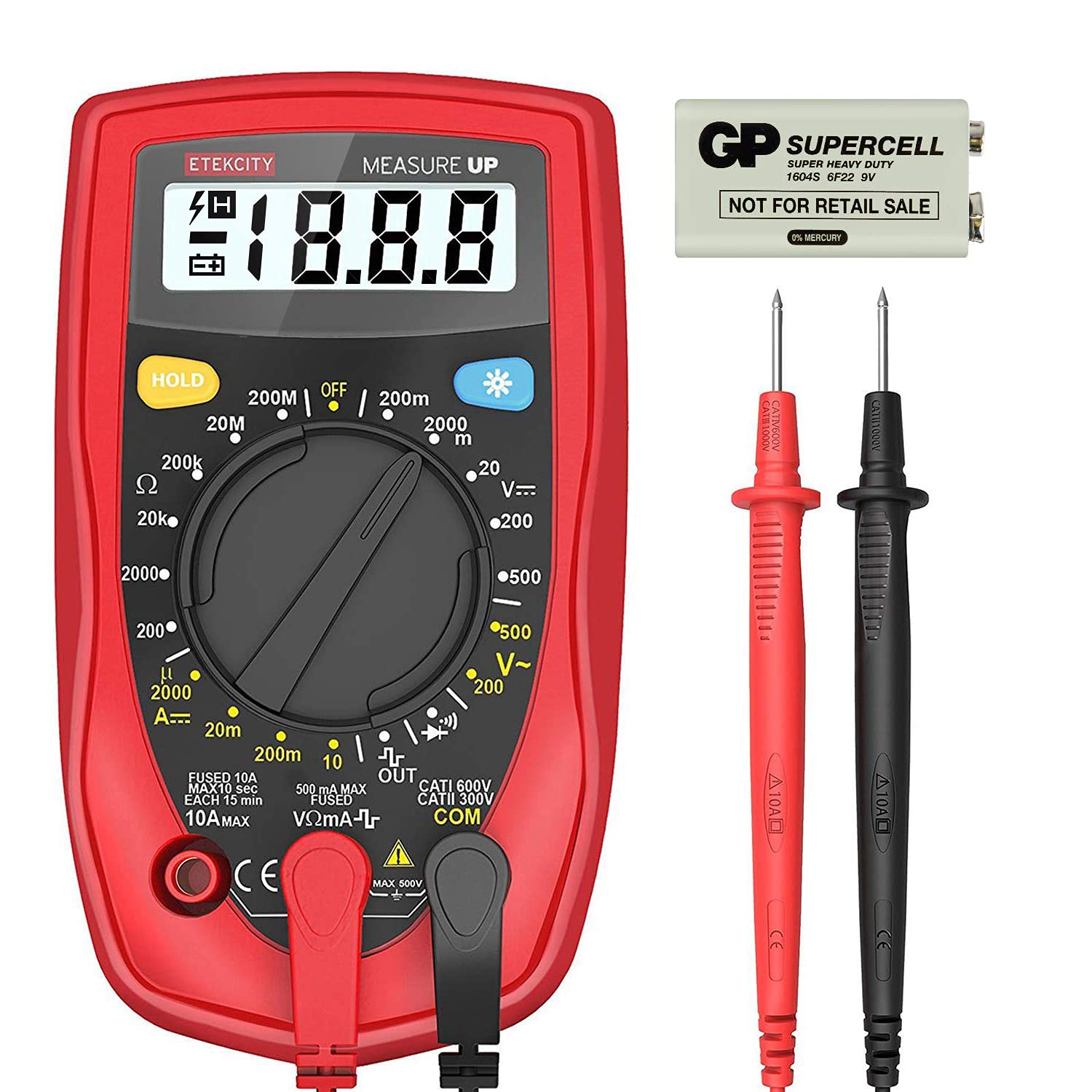

[5%(reading-10)+10] ★ Package Includes:1 x Etekcity MSR-R500 Digital

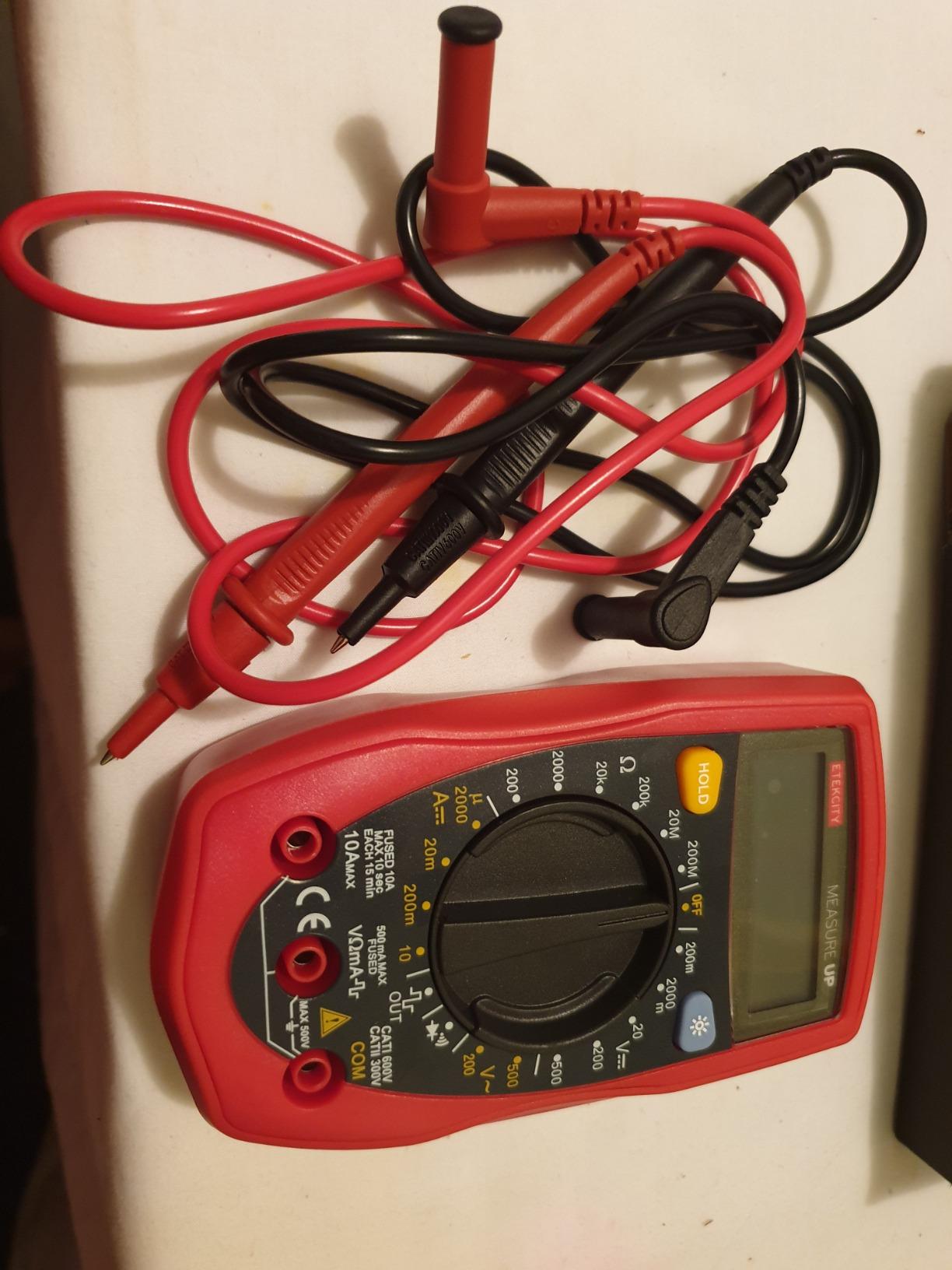

Multimeter; 2 x Test Leads (pair); 1 x GP Supercell 6F22 9V Battery; 1 x
User’s Manual ★Dimensions: 5. 1″ x 2. 9″ x 1. 4″ ★Power: 1 x 9V 6F22 Battery
Included (Low Battery Indication) ★Safety/Compliance: IEC61010 CAT. I 600V,
CAT. II 300V, double insulation ax.

Features:

• Accuracy: With 3/s Sampling Speed, this multimeter can accurately measure AC/DC Voltage, DC current (Not for AC current), Continuity, Amp, Resistance and Diode

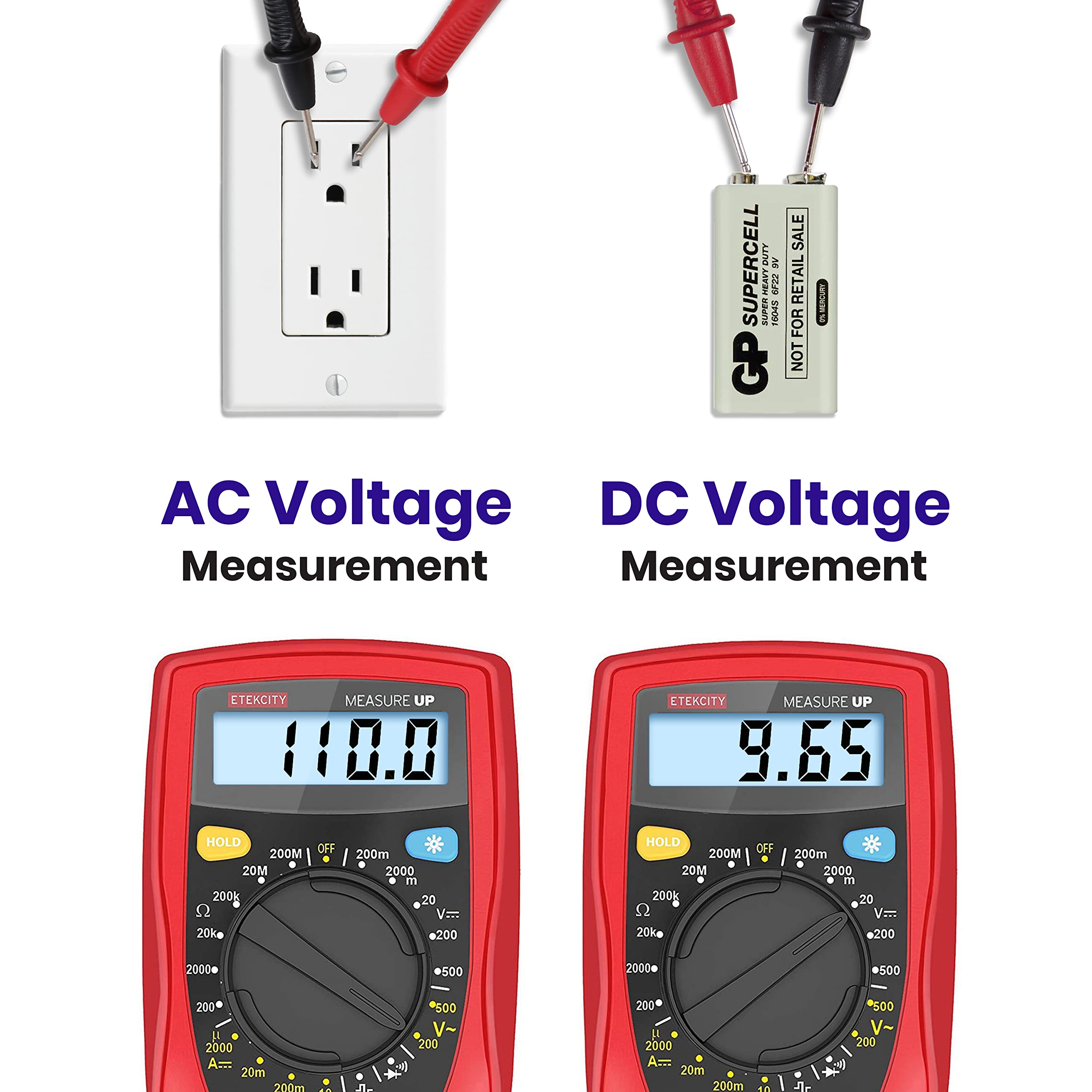

• Widely Used: This meter is capable of testing Household Outlets, Batteries (including 12V Automotive Battery), Continuity, Electrical Circuit, Fuses, Wires, Light Bulbs and Water Heaters

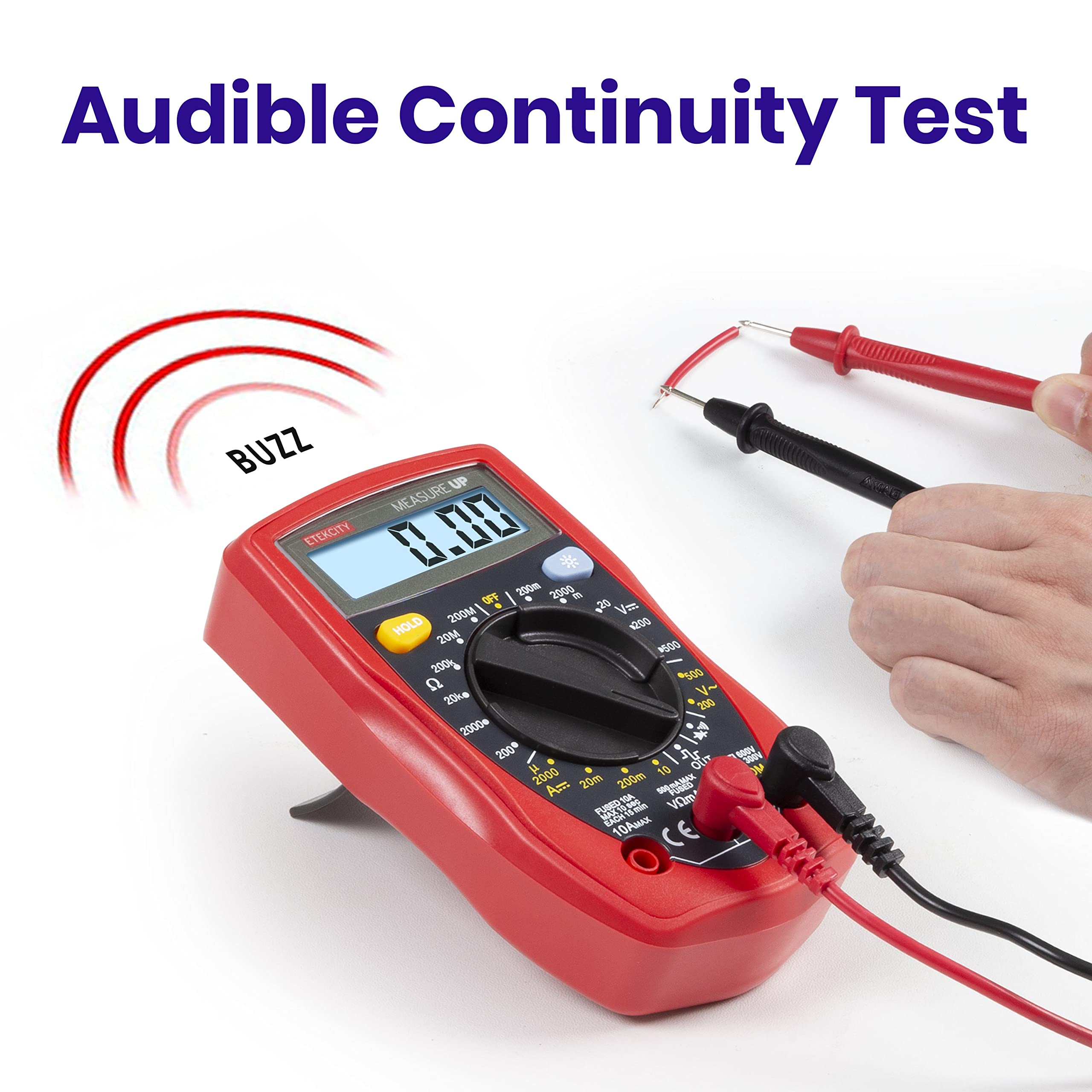

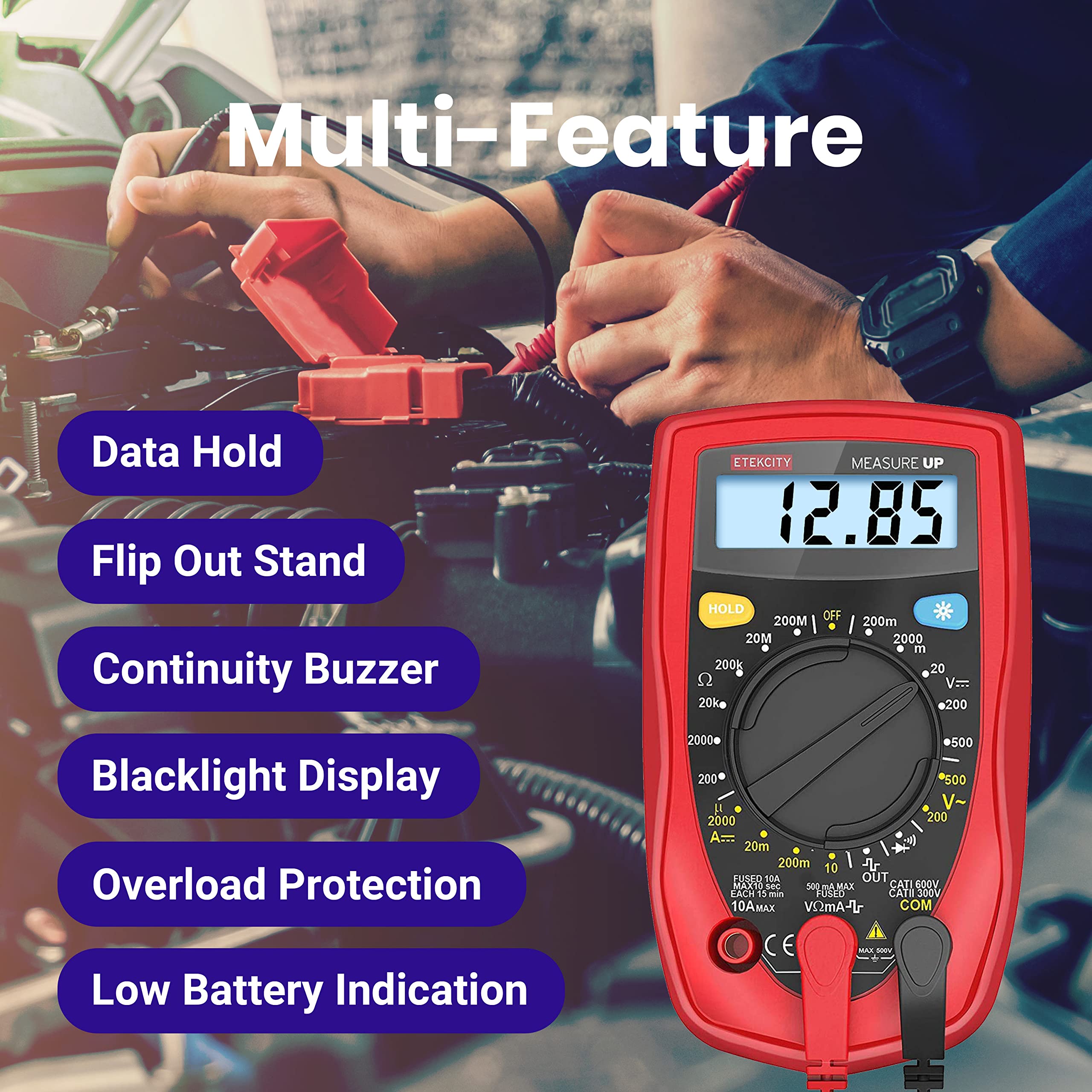

• Multi-Feature: Large Backlight LCD Display with 3 12 digits (1999 count) delivers your results clearly in dim light areas; Data Hold button holds a reading; Built-in Stand allows for hand free use; Low Battery Indication and Continuity Buzzer

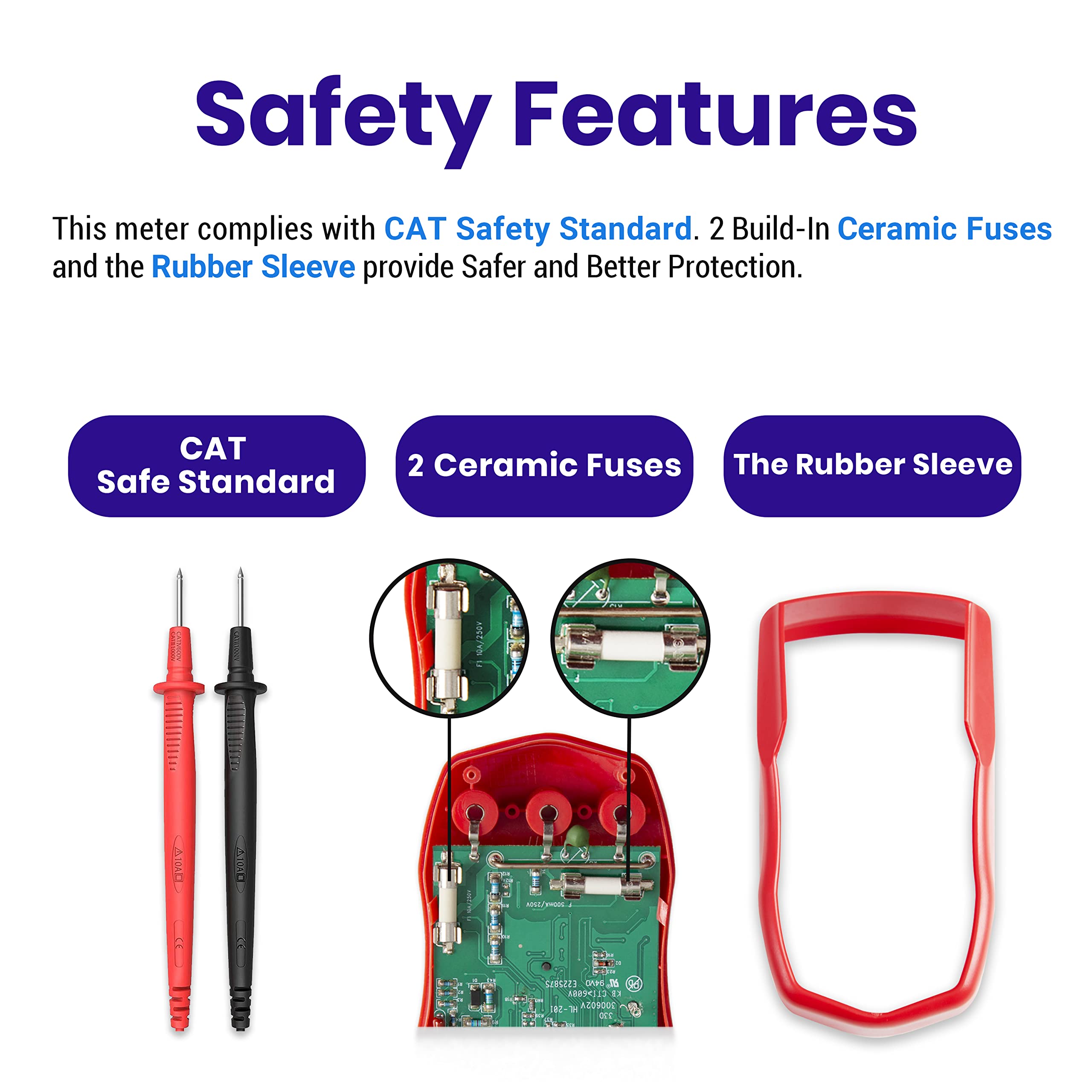

• Safety-Feature: This meter complies with CAT Safety Standard; 2 Build-In Ceramic Fuses and the Rubber Sleeve provide Safer and Better Protection; Overload Protection is active on All Range
• NOTE: This multimeter cannot be used to test AC current; Please make sure the rotary switch is located at the right range during use

Product Details:

• Brand: Etekcity
• Power Source: Battery Powered
• Style: Basic Model
• Color: Red
• Item Weight: 0.5 Pounds
• Is Discontinued By Manufacturer ‏ : ‎ No
• Product Dimensions ‏ : ‎ 4 x 2.9 x 1.4 inches; 8 Ounces
• Item model number ‏ : ‎ MSR-R500
• Batteries ‏ : ‎ 1 9V batteries required. (included)
• Date First Available ‏ : ‎ May 22, 2014
• Manufacturer ‏ : ‎ Etekcity
• Country of Origin ‏ : ‎ China
• Best Sellers Rank: #32,641 in Tools & Home Improvement (See Top 100 in Tools & Home Improvement) #66 in Multi Testers
• #66 in Multi Testers
