SHURflo Industrial Pump – 198 GPH, 115 Volt, 1/2in., Model# 2088-594-154
Product Details
- Part Number: 2088-594-154
- Item Weight: 5 pounds
- Product Dimensions: 8 x 4 x 4 inches
- Item model number: 2088-594-154
- Size: 1
- Color: port
- Material: metal, aluminum
- Power Source: ac
- Voltage: 115 volts
- Wattage: 104 watts
- Amperage Capacity: 0.9 A
- Item Package Quantity: 1
- Flow Rate: 3.3 GPM
- Batteries Included?: No
- Batteries Required?: No
- Shipping Weight: 5.5 pounds
- Domestic Shipping: Currently, item can be shipped only within the U.S. and to APO/FPO addresses. For APO/FPO shipments, please check with the manufacturer regarding warranty and support issues.
- International Shipping: This item is not eligible for international shipping.
- Date First Available: July 8, 2007
- N/A
- Imported
- self-priming up to 9 vertical lift feet
- used in delivery and transfer of liquid applications up to 3 GPM (11.4LPM)
- 1/2″ MPT, 115VAC 60Hz, non-corded 3 wires, built-in check valve prevents back flow of fluid
- built-in pressure switch, turn on/off at 45psi, adjustable pressure setting
- Santoprene valves and diaphragm

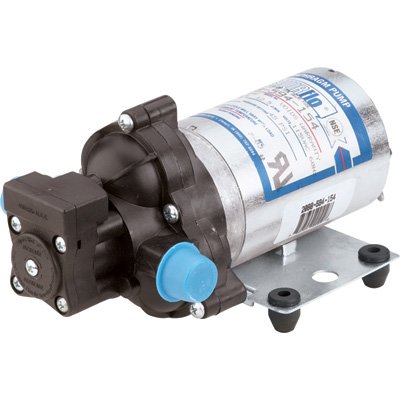

This SHURflo Industrial on-demand positive displacement, 3 chamber diaphragmpump has a permanent magnet, thermally protected 115V AC motor that deliversreliable performance in high-flow, moderate pressure applications. Self-priming up to 9 ft. vertical. Max. 50 PSI; max. 30 PSI inlet pressure.Discharge Port (in.): 1/2, Self-Priming: Yes, Thermal Overload Protection:Yes, Suction Port (in.): 1/2, Max. Total Head (ft.): 100, Flow (GPH): 198,Max. PSI: 50, Volts: 115
