Pyle Hydra Marine Amplifier – Upgraded Elite Series 240 Watt 4 Channel Audio Amplifier – Waterproof, 4-8 Ohm Impendance, GAIN Level Controls, RCA Stereo Input & LED Indicator (PLMRA120)

Description

Pyle Marine 2 channel 240W amplifier This Pyle
Hydra amp will power your speakers on the dock, in your boat, or by the pool–
it’s completely waterproof. This 2-channel, 240-watt marine amp takes both
high- and low-level inputs, so it’s compatible with a variety of head units
and sources. Remote turn/on off makes controlling the amp a breeze, and gold-
plated RCA inputs mean it won’t be a weak link in your setup. Power your
speakers on the dock, in your boat, or by the pool. Click here for a larger
image View a connection diagram. Click here for a larger imageInput OptionsThe

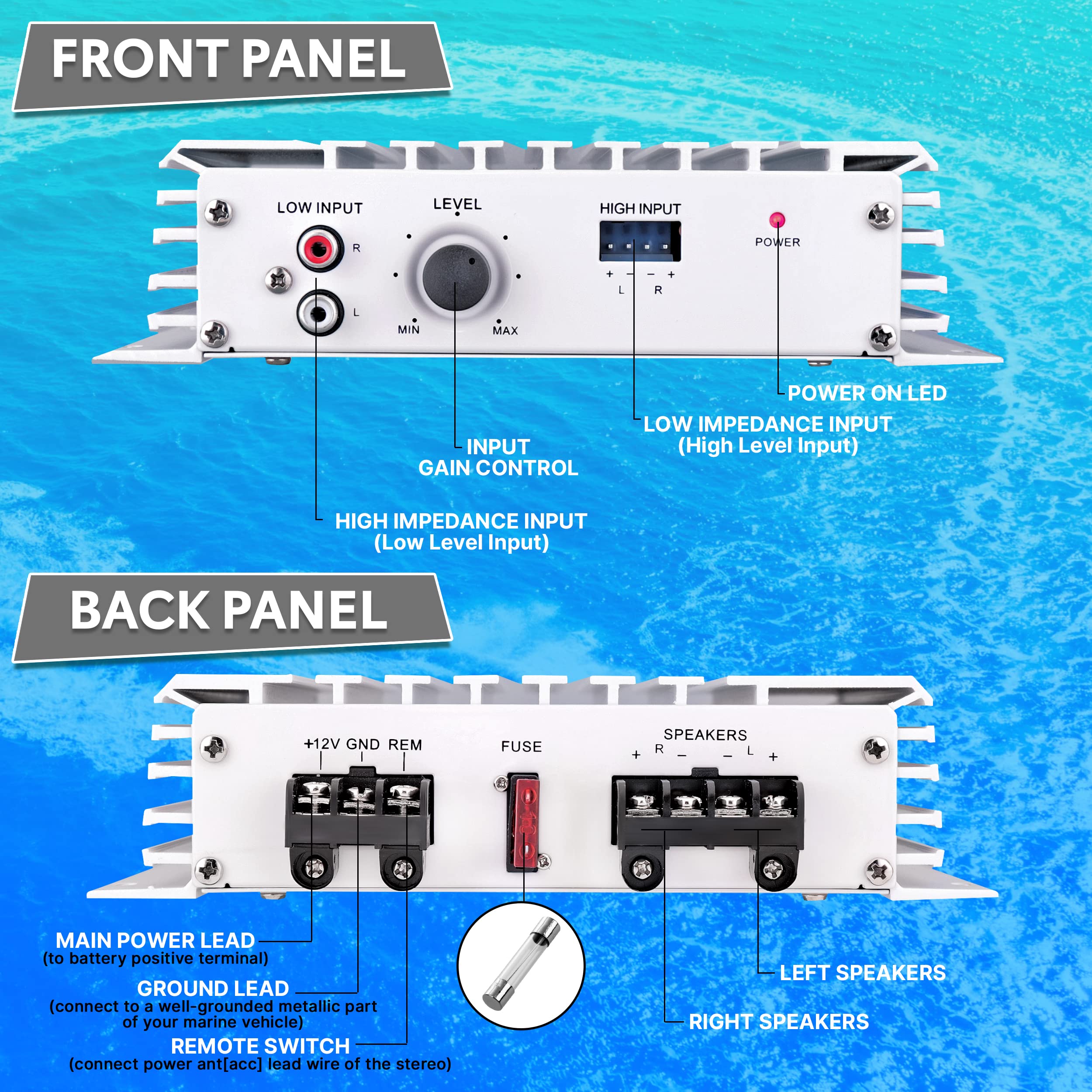

PLMRA120 features low-level RCA inputs for sources that use RCA-type
connectors. If your marine receiver lacks RCA output jacks, you can connect
speaker output leads to the high-level terminal inputs.Input Level
ControlAdjust the line level input for the least amount of distortion to match
your source unit.ProtectionProtect the amp and your vehicle’s electrical
system from short circuit conditions with built-in fuse protection, along with
overload, thermal and short circuit protection. A heavy duty aluminum alloy
heatsink helps prevent any thermal issues.4 or 8 Ohm Speaker ImpedanceThe
PLMRA120 is ready for either 4- or 8-ohm speakers, in pair.Remote Turn-
On/OffWire the PLMRA120 to turn on and off in tandem with your receiver/head
unit.Pyle PLMRA120 Select Specifications Power Rating: 120 Watts x 2 Maximum
(70 Watts x 2 RMS) T.H.D: 0.05% S/N Ratio: > 80dB Power Supply Voltage: 12V DC
Neg. Ground (11-16V) Frequency Response: 20 Hz-30 KHz Input Impedance: Low
Level: 10K Ohms High Level: 100 Ohms Input Sensitivity: Low Level: 300mV High

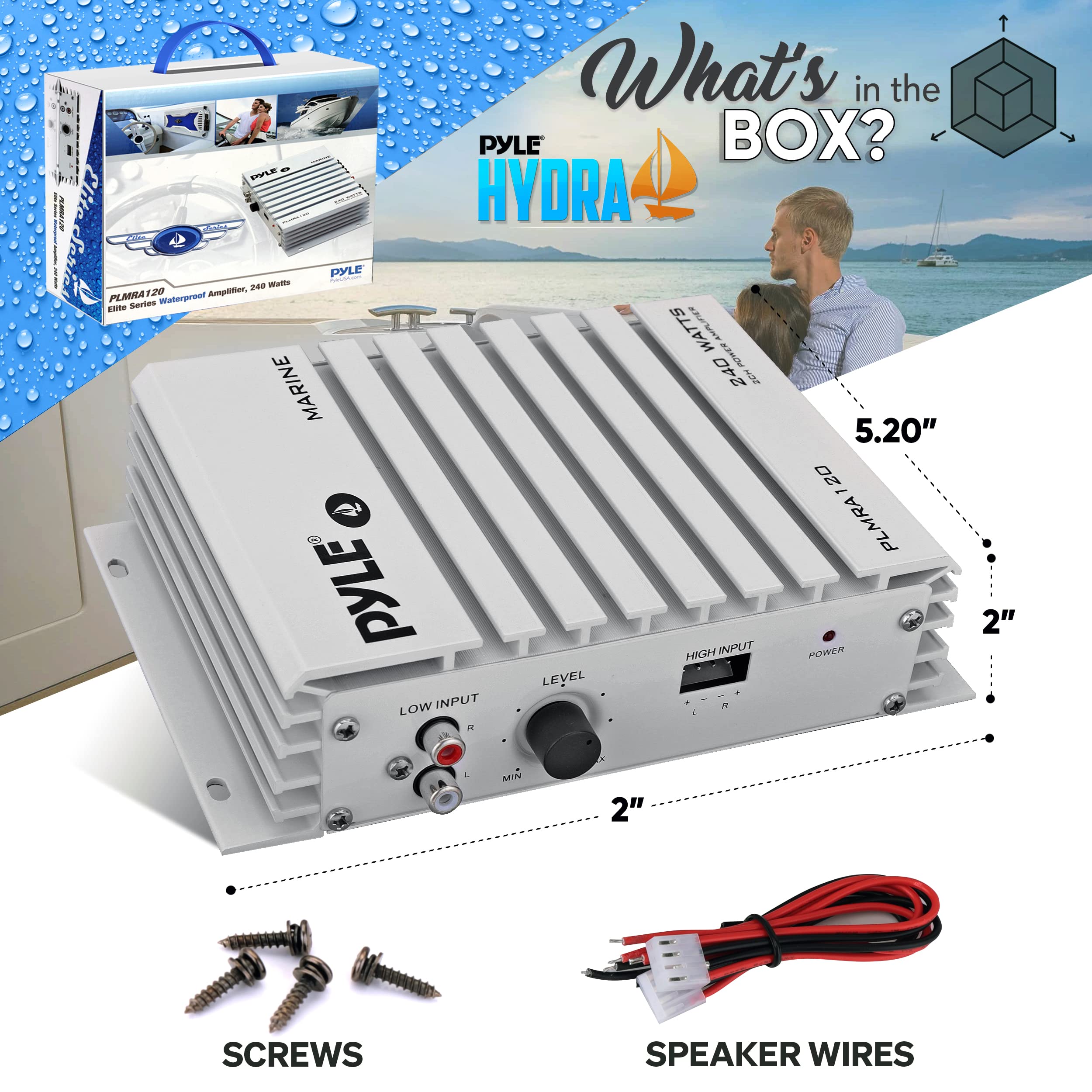

Level: 3V Dimensions: 7.87 x 2 x 5.2 Inches (L x W x H) What’s in the BoxPyle
PLMRA120 Amplifier, Mounting Hardware, User’s Manual

Features:

• PREMIUM 4 CHANNEL AMPLIFIER: Pyles PLMRA120 is engineered as a 4 Channel marine amplifier that allows high quality stereo reproduction from source. This will power up your speaker and universally compatible with a variety of head units.
• RCA STEREO INPUT: For an easier use of this hydra marine amplifier, it comes with premium RCA inputs. If your marine receiver lacks RCA output jacks, you can connect speaker output leads to the high-level terminal inputs.
• SHORT PROTECTION: Built with a heavy duty Aluminum Alloy heatsink, thermal overload speaker short protection and LED light indicator. These are to protect the amp and your vehicle's electrical system from short circuit conditions.

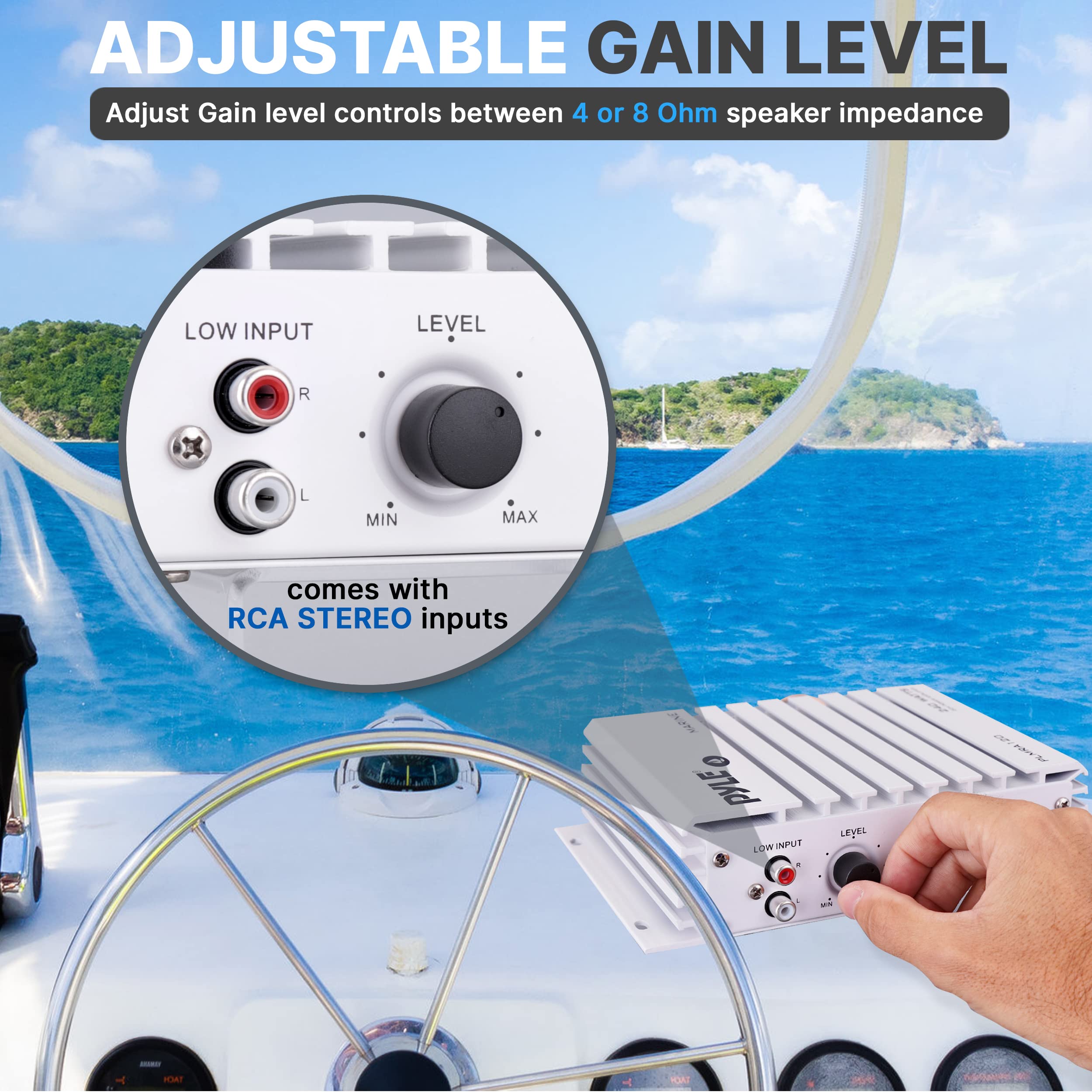

• POWERFUL 240 WATT: This amplifier is powerful with its IC Power 120 Watts x 2 Output power supply. Comes with dual adjustable input GAIN level controls between 4 or 8 Ohm speaker impedance.

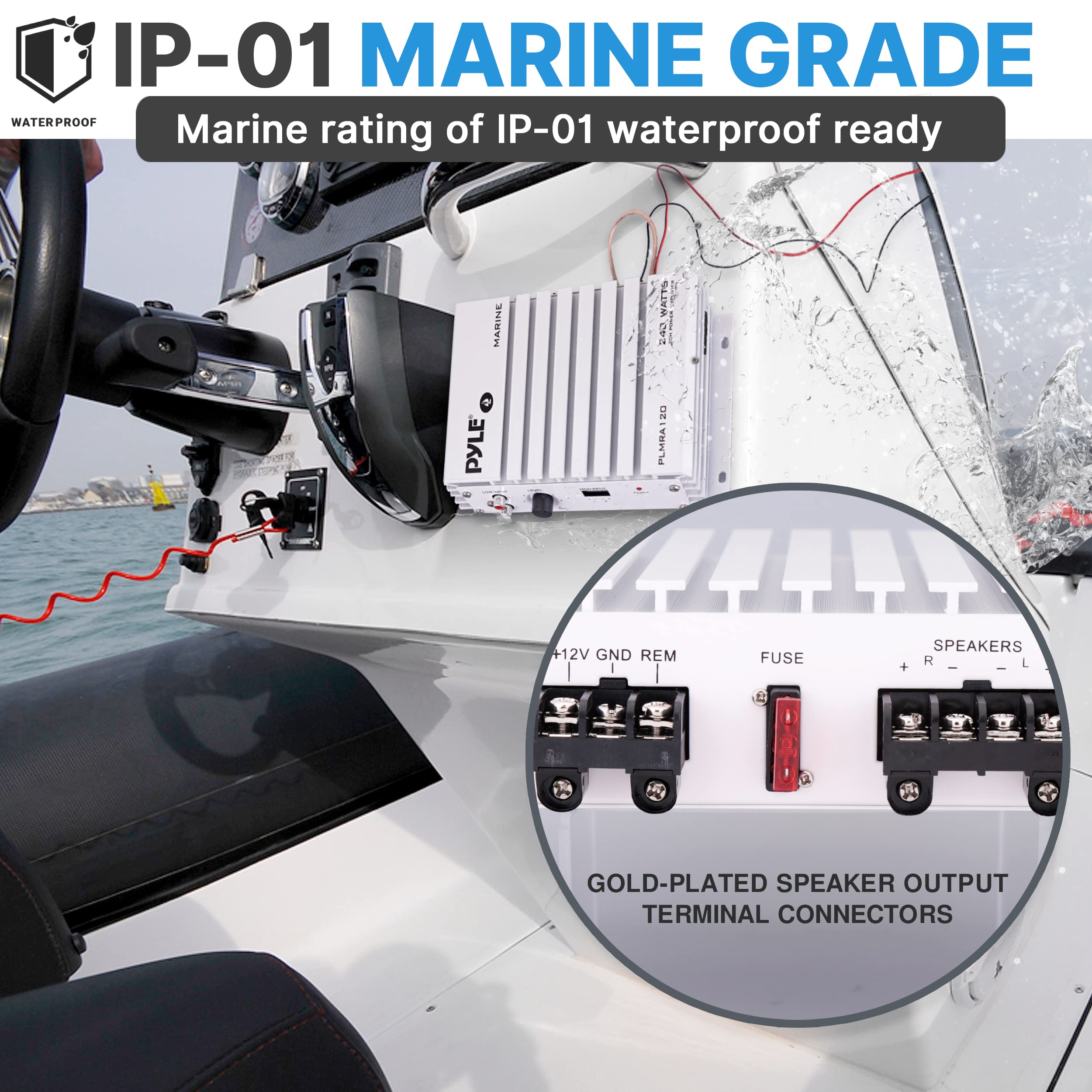

• MARINE GRADE: With its Marine rating of IP-01, it is waterproof ready. Its constructed with gold-plated speaker output terminal connectors as well to combat corrosion with long term use.
• Note: Ensure that the power source is the correct voltage/amperage, also check the wiring and speaker load
• Waterproof two-channel power amplifier with 2 x 120 Watts maximum output
• High-level terminal inputs and gold-plated low-level RCA inputs with adjustable input level
• Overload, Short Circuit, and Thermal protection; heavy-duty aluminum heatsink
• Ready for either 4- or 8-ohm speakers, in pair
• Remote turn-on/off connector

Product Details:

• Item Dimensions LxWxH: 8.5 x 8.4 x 2.7 inches
• Voltage: 12 Volts
• Manufacturer: Pyle
• Brand: Pyle
• Number of Channels: 4
• Is Discontinued By Manufacturer ‏ : ‎ No
• Product Dimensions ‏ : ‎ 8.5 x 8.4 x 2.7 inches; 2.7 Pounds
• Item model number ‏ : ‎ PLMRA120
• Department ‏ : ‎ Unisex-Adult
• Date First Available ‏ : ‎ January 1, 2007
• Manufacturer ‏ : ‎ Pyle
• Country of Origin ‏ : ‎ China
• Customer Reviews: 4.0 4.0 out of 5 stars 470 ratings
• Item Dimensions LxWxH: ‎8.5 x 8.4 x 2.7 inches
• Voltage: ‎12 Volts
• Manufacturer: ‎Pyle
• Brand: ‎Pyle
• Number of Channels: ‎4
• Material: ‎Plastic
• Item Weight: ‎2.7 pounds
• Product Dimensions: ‎8.5 x 8.4 x 2.7 inches
• Country of Origin: ‎China
• Item model number: ‎PLMRA120
• Is Discontinued By Manufacturer: ‎No
• Warranty: ‎Manufacturer Warranty
• Height (inches): ‎2.25 inches
• Width (inches): ‎8.5 inches
• Weight: ‎1.04 Kilograms
• Date First Available: January 1, 2007
