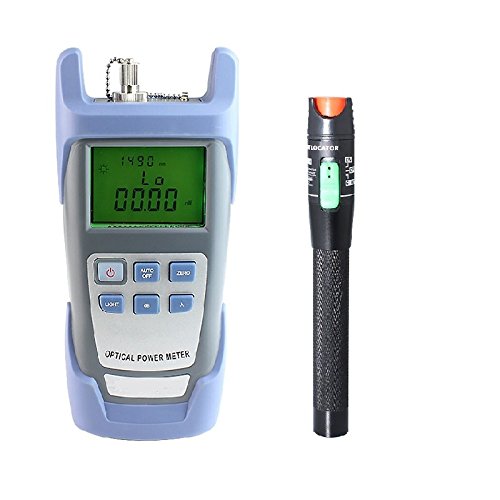

Fiber Optic Cable Tester FC SC & 2.5mm 30mV Visual Fault Locator with Sc,Fc Connector and Shoulder Toolkit

Description

Specification: 1.Fiber Optic Cable Tester Calibration Wavelength: 800~1700nm
Detector Type: InGaAs Measurement Range: -70 – 10dBm Linearity: 0.01dB Display
Resolution: 0.01dB Wave ID: 850, 980, 1300, 1310, 1490, 1550, 1625nm

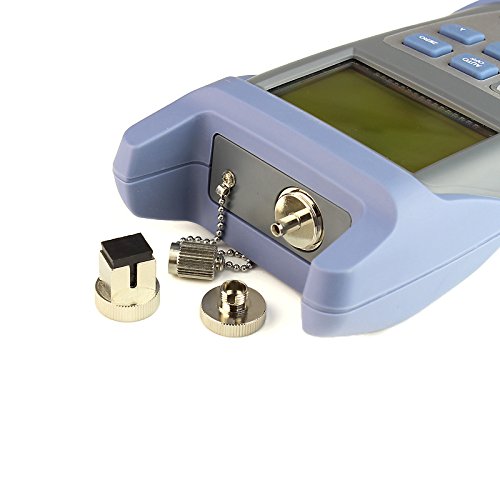

Connector: FC/SC/ Interchangeable Alkaline battery:4x AA Battery(Not included)
Power Adapter: 8.4V Working Time: 240h without backlight Working Temperature:
-10 ~ 60 Celsius Storage Temperature: -25 ~ 70 Celsius Dimension(mm):

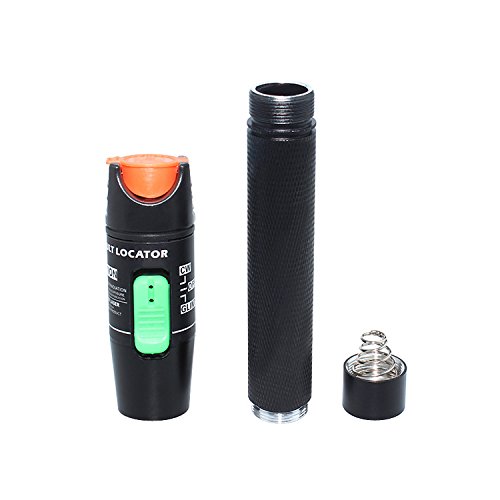

18×8.2×2.8cm Weight: 230g 2.Visual Fault Locator Wavelength: 650nm ± 20nm
Output Power: >30mW Dynamic Distance: >25km Connector: 2.5mm Universal
connector Power Supply: AA 2 Operating Temperature: -10 — +50 °C, <90%RH
Storage Temperature: 20 — +60 °C, <90%RH Packaging Size: 2107330 Weight:

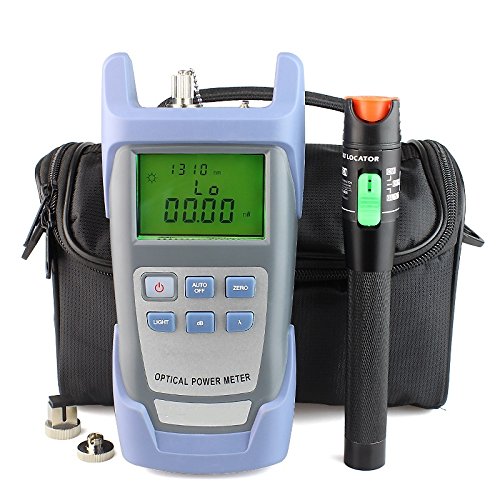

150g Package Include: 1x Fiber Optic Cable Tester 1x Visual Fault Locator 1x

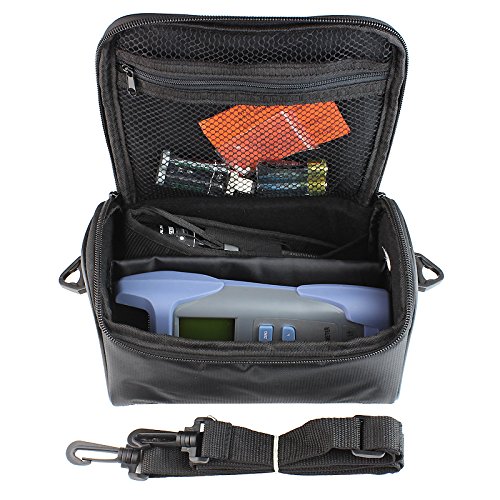

FC Connector 1x SC Connector 1x Shoulder ToolKit 1x English Instruction Goeco
Technology Co.Ltd is a professional manufacturer and retailer that sells fiber
optic cables, fiber kits, fiber optic cleaning tools and network testers. We
have a professional service team, all products have been checked before
delivery. As a professional seller, we hope to make 100% customer
satisfaction. Any problems please contact us.

Features:

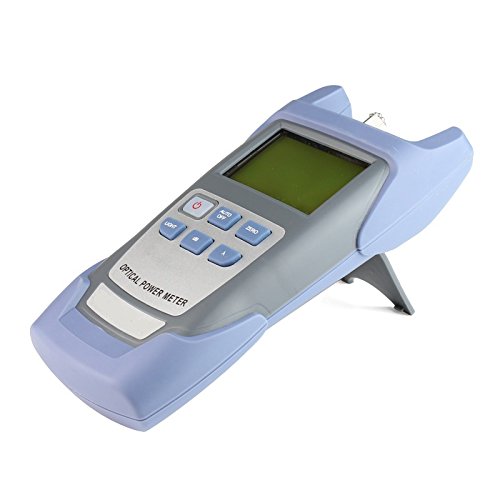

• Fiber Optic Cable Tester: It can measure /1310/1490/1550/1625nm and other 7 wavelength of the optical absolute power, test range:-70dBm~+10dBm.

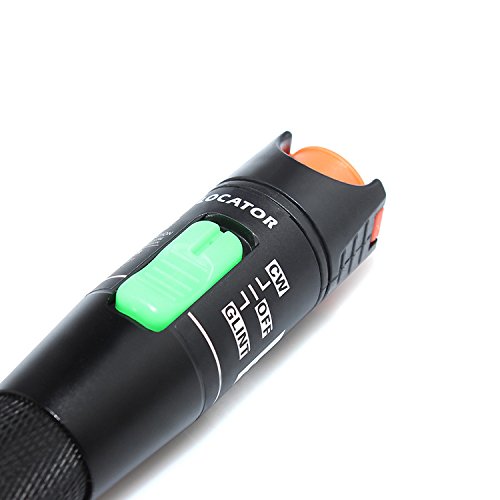

• Linear and non-linear with same display screen,alternatively steady / strobe red light source;work for 40 hours with automatic shutdown.

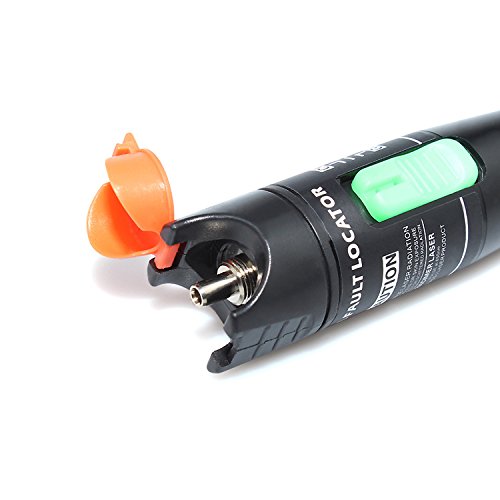

• Visual Fault Locator: 2.5mm Universal Connector the connector of the detector is compatibly designed for ST, SC, FC interferes both in circle and square shape of different fiber optic cables.
• It can easily and accurately detect and locate fiber breaks, poor connections, bending or cracking. The detector will emit a 650nm bright red light for fiber tracing, breaks or faults in the fiber will refract the light, creating a bright glow around the faulty area.
• If you have any problems while using our fiber optic termination tool kit, please feel freely contact us, we provide 7/24 hours customer service.

Product Details:

• Brand: Goeco
• Power Source: Battery Powered
• Style: Digital
• Color: Red
• Item Weight: 380 Grams
• Is Discontinued By Manufacturer ‏ : ‎ No
• Package Dimensions ‏ : ‎ 8.7 x 5.2 x 4.9 inches; 13.4 Ounces
• Date First Available ‏ : ‎ December 9, 2016
• Manufacturer ‏ : ‎ Goeco
• Best Sellers Rank: #104,610 in Electronics (See Top 100 in Electronics) #1,046 in Electrical Testers #13,586 in Home Cinema Cables
• #1,046 in Electrical Testers
• #13,586 in Home Cinema Cables
• Customer Reviews: 4.3 4.3 out of 5 stars 150 ratings
