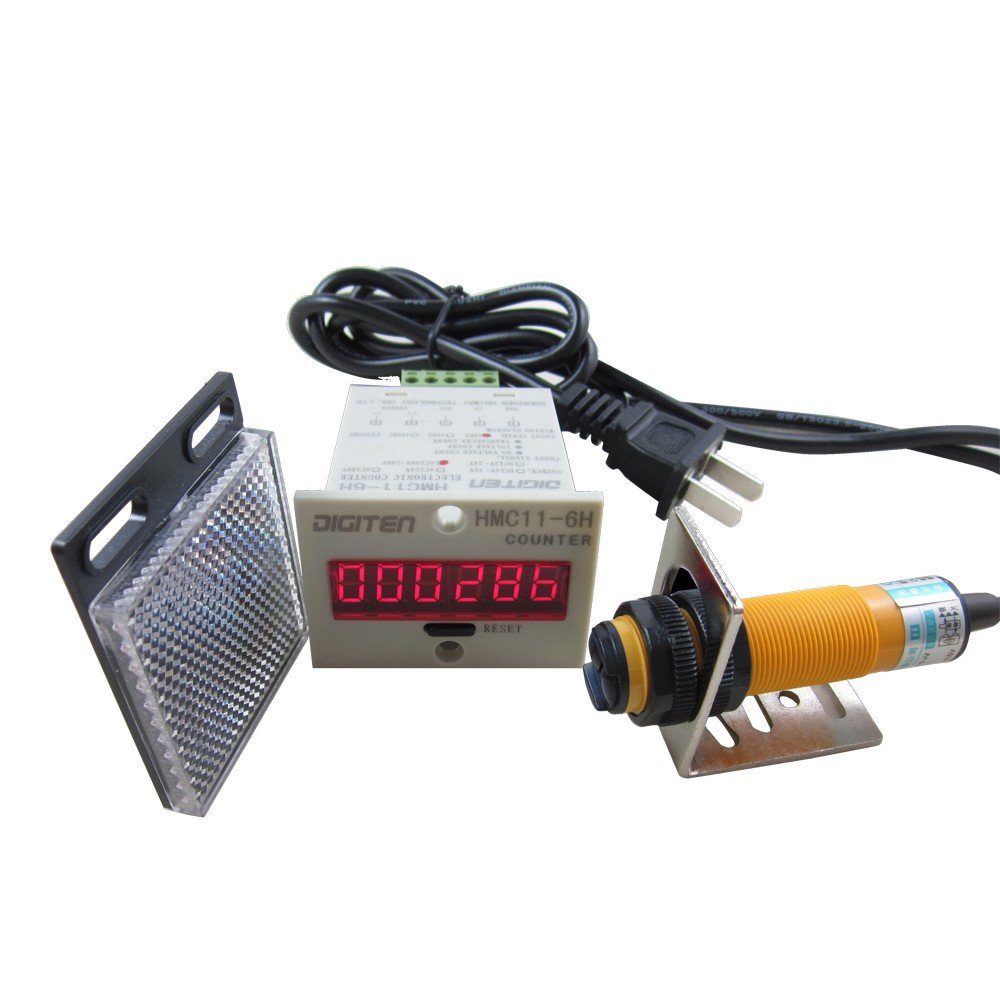

Digiten 0-999999 Digital Led Counter +Photoelectric Switch Sensor +Reflector ..

Product Details

Size Name: 100-240VAC
Brand: DIGITEN

• Part Number: HMC11-6H-PH
• Item Weight: 8.8 ounces
• Product Dimensions: 1.6 x 3.4 x 2.2 inches
• Size: 100-240VAC
• Item Package Quantity: 1
• Batteries Included?: No
• Batteries Required?: No
• Shipping Weight: 8.8 ounces
• Date First Available: December 21, 2015

• Power requirement:AC/DC100-240V
• Stronger photoelectric sensor come with reflector, detection distance up to 2m
• 6 Digits RED led counter, it is very accurate
• Data be retained when power failture
• This kit can detect most of object, for example, metal,plastic,glass,book,clothes,bag,wood,people,etc

Size Name: 100-240VAC Stronger photoelectric sensor come with reflector, detection distance up to2m, it worked great and it is very accurate when detection distance is 7ft.This kit can detect most of object, for example,metal,plastic,glass,book,clothes,bag,wood,people,etc. and power requirement isAC/DC100-240V,come with US plug.Panel built in manual reset button. And itcome with sensor mounting holder.it is very easy to hang up. Features & Specifications Power supply:AC/DC100-240V Counter Current consumption: 60mA Infrared photoelectric switch sensor:NPN 3 wires normally open,NO,6-36VDC trigger mode: rising edge Display: 0.56″ RED LED,6 digits. Response frequency: 10HZ Counting method: Plus or UP Display range:0-999999 Reset: manual Detection distance: 0-6ft(0-2m) Sensor cable length:1.2m(4 ft) Power lead: 1.5m(5ft), US plug Overall dimension: 57mm40mm85mm Panel cutout dimension:51mm27mm Sensor head dimention: M18x70mm. Reflector dimention: 6mm5mm0.8mm The meter retain the number automatically when power cut off. Sensor wiring:brown—Power+; blue—Power-;black—signal. Counter operating temperature: 0 to 50C. Sensor working temperature: -30-70C(non condensing:-30%RH– +95%RH) Packaging include 6 Digits red counter x 1 Photoelectric sensor x 1 Reflector x 1 Power plug wire x 1 Sensor mounting holder x 1 Instruction x 1
