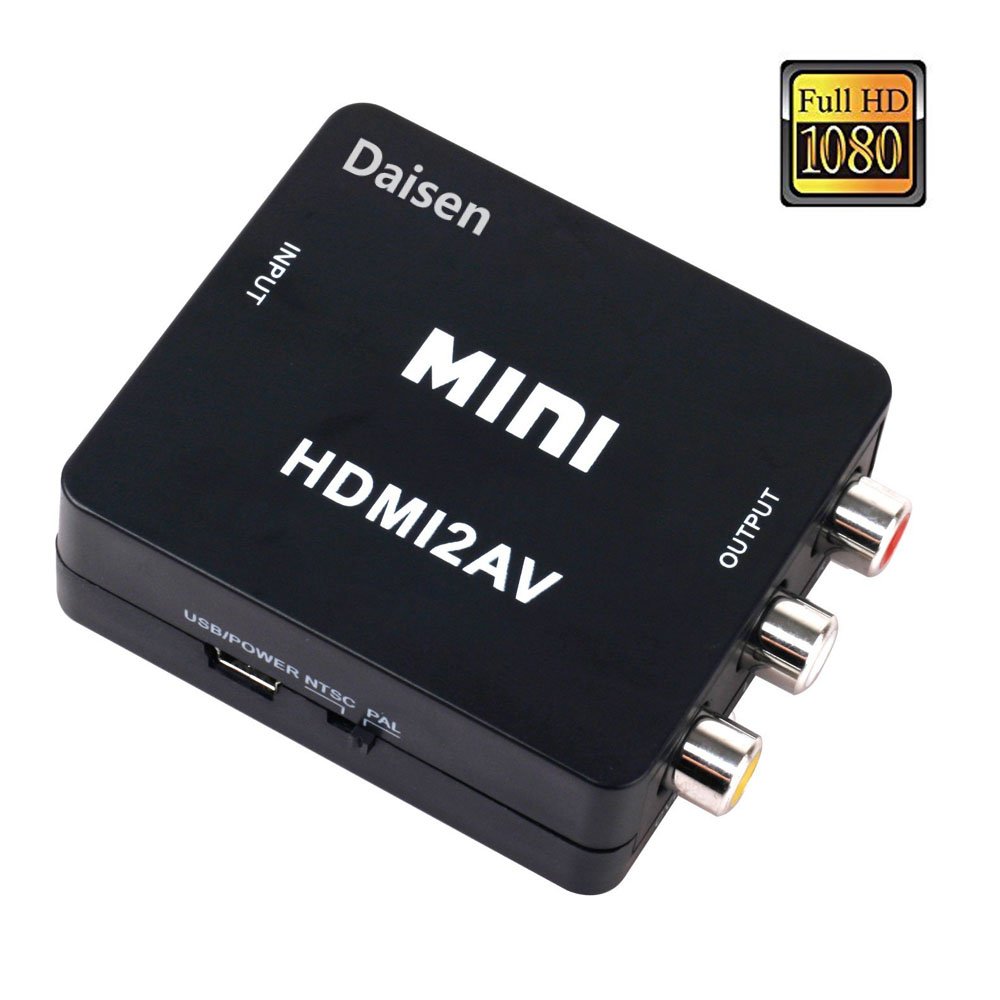

Daisen tech HDMI to AV Converter 1080p HDMI to RCA CVBS AV Composite Adapter HDMI 2 AV Converter support PAL/NTSC TV format output (HDMI to AV+Black)
Product Details
Color: HDMI to AV+Black
Brand: Daisen tech
- Item Weight: 1.6 ounces
- Product Dimensions: 6.1 x 2.2 x 1 inches
- Shipping Weight: 1.6 ounces
- Compatible HDMI1.3, Support HDMI input from 480i to 1080P. Does NOT support 3D
- Supports NTSC and PAL two standard TV formats with a select switch
- HDMI Input; Composite Video + Audio R/L Output
- No need to install drivers, portable, flexible, plug and play
- Package includes: Converter, USB Power Cable and User Manual
Color:HDMI to AV+Black Description: The Mini HDMI to Av signal converter whichwill convert HDMI video signal or audio signal to AV (CVBS) composite videosignal and the FL / FR stereo audio signals, while support DVI system sidelinesignals. Help users convert the high quality of the HDMI video signal intonormal CVBS signal (standard definition 480i, 576i). So that can play on TV,VHS VCR, DVD recorders, etc. Support NTSC and PAL two TV format.Specification: 1. Input ports: 1xHDMI. 2. Output ports: 1xRCA(Yellow,White,Red). 3. Dimensions(mm): 72(D)x55(W)x20(H). 4. Wight (g): 40. 5.Composite input: PAL,NTSC3.58,NTSC4.43,SECAM,PAL/M,PAL/N. 6. Composite output:PAL,NTSC. 7. Input HDMI: 480i/60Hz, 480p/60Hz, 576i/60Hz, 576p/60Hz,720p50/60Hz, 1080i50/60Hz,1080p50/60Hz; 8.Output signal: CVBS(1.0Vpp),S-Video(Y:1.0Vpp, C:0.3Vpp; 9. High bandwidth capability support1920x1080@60Hz Applications: 1. Widely applied to personal or family: Connecthigh-definition player, DVD, set-top boxes, and PS3, XBOX360 Blu-ray machinesand so on. Can be watched by the common TV AV interface after converted. 2.KTV:Taking the HD HDMI signal access VOD system,converted into common AVsignal,convenient to transfer out and then transferred into small TVs. 3.Important conferencing systems,can be used for display platform:Afterconverted the HD HDMI signal of the HD camera by the converter, then throughthe acquisition card to a computer system to facilitate remote meetingstransmission. Package Content: – 1 x HDMI to AV Converter – 1 x USB Cable – 1x User Manual
